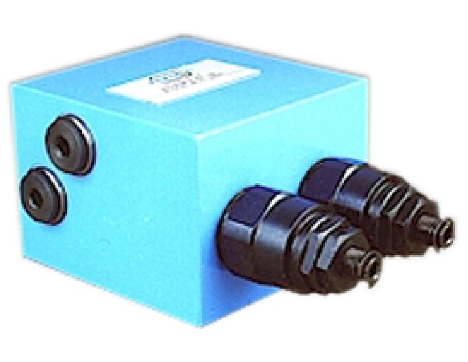

POLYHYDRON PRESSURE CONTROL MODULE- (PCM06-06-100-315)


$ 92.71
Description Technical Specification Construction:  Direct acting poppet type High Pressure Relief Valve. Mounting: Threaded body [Factory Standard] Mounting Position: optional Direction of Flow: As per hydraulic symbol Operating Pressure: For low pressure pump port upto 100 bar. For high pressure pump port upto 315 bar. Hydraulic Medium:   Mineral Oil Viscosity range:  10cSt to 380cSt Fluid Temperature Range:  -20°C to 70°C Fluid Cleanliness Requirement:  ISO 4406  20/18/15 or better Flow Handling Capacity: High Pressure Flow- 25 LPM : Low Pressure Flow – 25 LPM Mass: 1.75 kg Approx.
