Fishing frame 600 - 2100mm

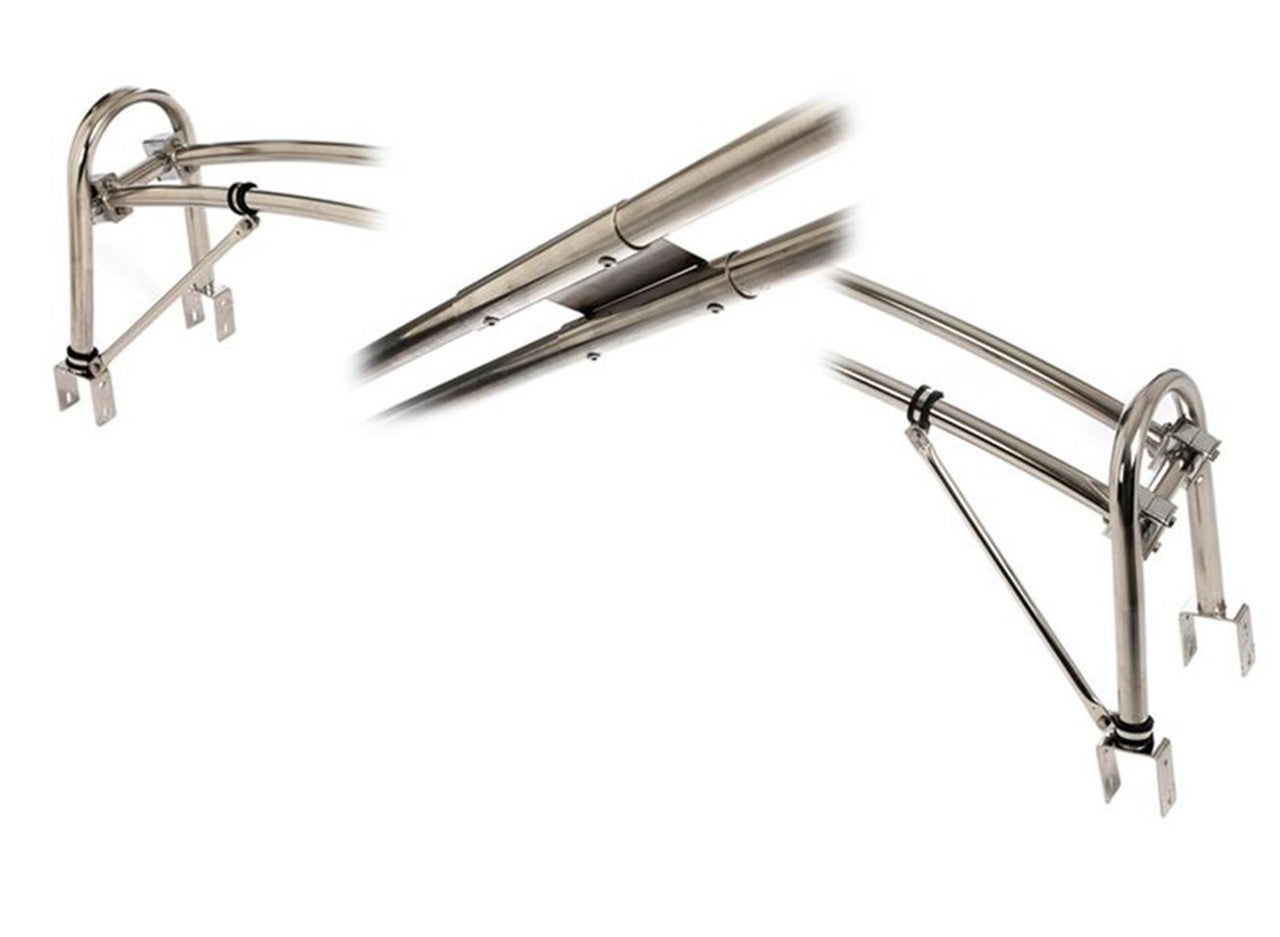

In the middle of the fishing frame is a 130mm wide piece of attachment to which any boat equipment can be easily attached. The attachment of the extension piece is always made with RST tension rivets, which are sure to withstand even high tensile strengths. Features Just the right handrail width Dimension between handrail brackets approx. 210mm (longitudinal of the boat) Material thickness 1.25mm, which withstands high tensile forces Round steel diameter 25mm, which is standard on boat equipment The material is acid-resistant 316L low-carbon steel Delivery content 2 Bonete edge part, and a suitably long middle beam in the middle part 2 pcs Bonete corner support part with 25mm clips 4 pieces. Aluminum mounting bracket (attachment of the middle beam to the edge parts) 4 pieces. Plastic rubber compound mounting stick (product mounting on handrails) 8pcs. Bonete stauff washer 20pcs. Acid-resistant M6 bolt and nyloc nut Installation instructions 1. Adjust the width of the product to the width of the handrail (mm) and tighten all bolts and nuts 2. Attach the product to the handrails (fasteners; 4 * (plastic / rubber stuffer and washer) 8 * (M6 bolt and nut)) 3. Finally, fasten the corner support part on both sides between the middle and the edge part at an angle of about 45ast When ordering, be sure to indicate the desired product width in millimeters (possibility: 600mm-2500mm) in the additional information field. The width of the best / strongest arch is about 10 cm narrower than the dimension of the handrail spacing (mm).
