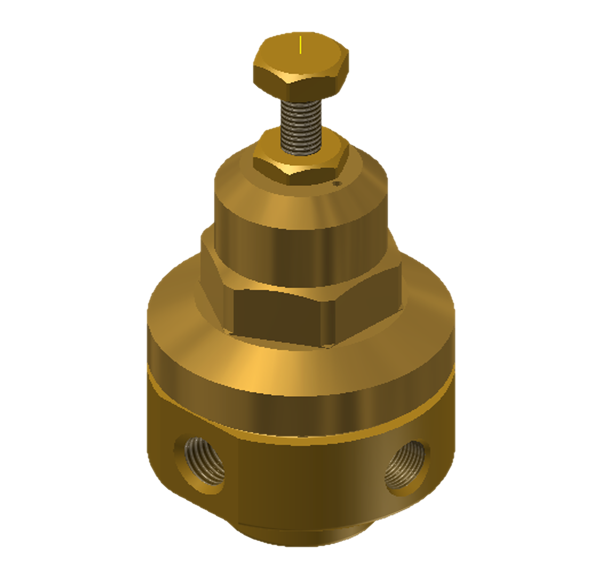

Oxygen cryogenic pressure regulator DONMET RKK-17

For liquid oxygen -196°С. The pressure regulator is used as part of cryogenic cylinders, vaporizers or converters. The single-stage cryogenic pressure regulator RKK-17 is designed to reduce and regulate the pressure of cryogenic liquid and automatically maintain a constant set working pressure. All parts of the cryogenic regulators are made of materials compatible with cryogenic temperatures (up to -196°С) and are cleaned for operation with liquid oxygen in accordance with the CGA G-4.1-2009 standard. – The reducing valve, made with a PTFE insert, ensures reliable operation at temperatures up to -196°C. – The reduction unit filter prevents foreign particles from entering the reducer. Used materials Presuure regulator body CuZn38Pb1 Presuure regulator cover CuZn38Pb1 Valve body, plug CuZn38Pb1 Reducing valve PTFE, CuZn38Pb1 Reducing spring AISI321 Setting spring AISI321 Adjusting screw, locknut CuZn38Pb1 Membrane PTFE, CuZn38Pb1 Filter element EF-5 CuSn10P   Working temperature, °С -196 Max. inlet pressure, bar 40 Established working pressure, bar 8,6 Outlet pressure range, bar 1…17 Connecting threads G1/4’’ Overall dimensions no more, mm 60х60х130 Weight no more, kg 0,97
