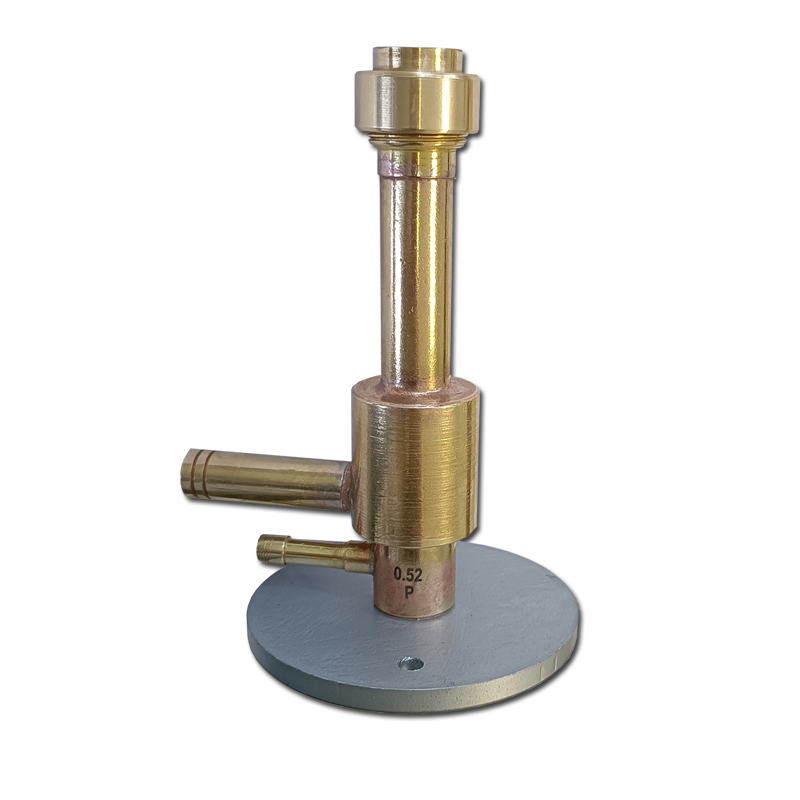

Gas-air injector burner on gaseous fuel type GV “DONMET” 285


$ 69.41
The “DONMET” 285 gas-air laboratory burner is designed for mixing combustible gas with compressed air and burning it in the atmosphere with the formation of a torch flame of a given shape. The torch is used for laboratory work in the conditions of chemical, physical and other laboratories, as well as soldering processes with soft and hard solders with a melting temperature not exceeding 700°C, heating, melting and other similar thermal processes. Fuel gas used: propane-butane (propane 95%). TECHNICAL SPECIFICATIONS Gas fuel Pressure, MPa Consumption l/min  Propane-butane (propane 95%) 0,1 0,65 Compressed air 0,1 10 Power of heat flow, kW 1,0 Overall dimensions, mm 80x97x136 Weight of the burner, kg, no more 0,6 The inner diameter of the connecting sleeves, mm 6/9 Precious metals are not used in the product. DELIVERY KIT Name SKU Q-ty “DONMET” 285 with injector (Ø 0.52) 285.000.05 1 Injector (Ø 0,52) 285.000.05 2 Gas valve (upon request) 943.000.19 Valve K (upon request) 943.000.02 Manual 1
