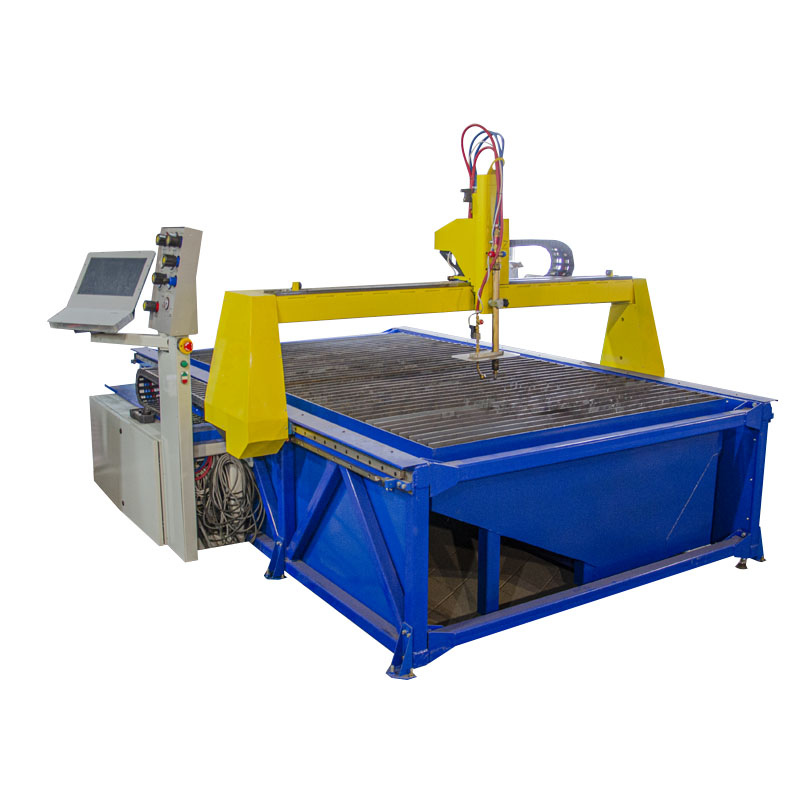

CNC air-plasma cutting machine Donmet 976

CNC air-plasma cutting machine “DONMET” 976 (Order No. 976.000.00) Portal machine for automated high-precision programmable shaped cutting of sheet metal according to drawing with a sheet width up to 1,500 mm (up to 3,000 mm for a separate order). The machine allows you to cut blanks of complex configuration with high accuracy and quality of the cut surface. The machine is equipped with a gas-oxygen machine cutting torch “DONMET” 345, which provides cutting according to the 1st class of accuracy. On individual order, it can be equipped with a plasmatron for air-plasma cutting of metals. Dimensions of the sheet being processed — width — length   1500 mm 2500 mm Number of calipers 1 Number of cutting torches 1 Speed (idle) up to 20,000 mm/min Positioning accuracy ± 0,1 mm Cutting materials carbon, structural and low-alloy steels Cutting thickness up to 300 mm Voltage 380 V Consumed power, no more 1.5 kW X and Y axes use high-quality polished helical rails, which ensure shock-free and long-lasting operation at high moving speeds, and linear guides of 30 mm (X axis) and 20 mm (Y axis), X and Y axes are equipped with servo drives; Independent gas and plasma columns; Cutting table, standing alone, sectional, with exhaust windows that open automatically when cutting process is above them; Coordinate backlash-free planetary gearboxes, kinematic accuracy: ± 0.05 mm; The oxygen and combustible gas supply control panel is equipped with “DONMET” equipment, two-stage supplying of cutting oxygen and heating oxygen; Algorithm for setting the cutting process – ignition, heating, punching, cutting; The operator’s console is equipped with a 17-inch touchscreen monitor and a wireless control panel; The machine control system has a DXF file converter, a large library of standard parts, alignment of contours by sheet, creation of an array of the same type of parts; High quality of the cut (minimum bevel of the edge, low roughness of the cut); Cutting of metal up to 300 mm thick; A more economical process of cutting metal over 20 mm thick compared to plasma cutting; Optional sheet search before cutting.
